Our race car’s wiring, in our second year, was held together by WAGO connectors and optimism. Almost nothing on the car matched the original design — wires went in, came out, got re-routed, got re-connected, sometimes three times in a week. So when something electrical died, “just look for the problem” was a joke. Everything looked fine. That’s the trap with wiring: your eyes lie. A multimeter doesn’t.
The short version: set the meter to continuity mode, disconnect the battery, and probe the circuit segment by segment — fuse, wire, connector — until the beep stops. The silent segment contains your break. Below is how that plays out on a real car, plus the two other checks that save you from buying parts you didn’t need.
The Day the Car Threw an Error at Startup

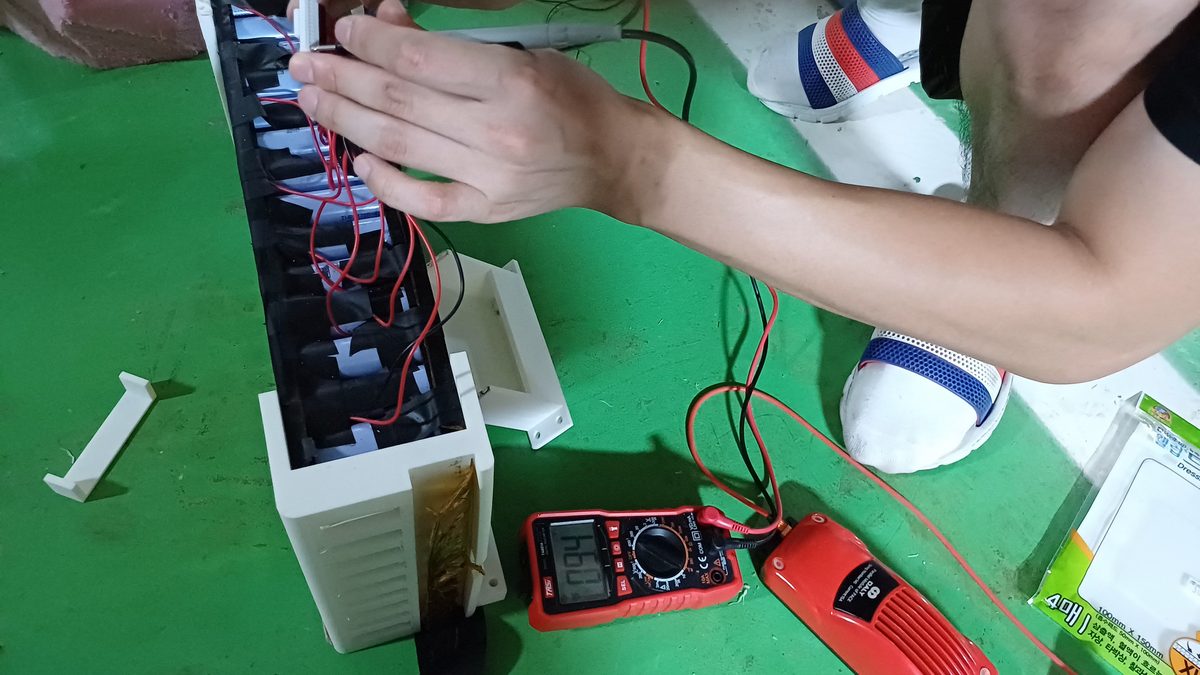

At a weekend test session, the motor controller threw an error the moment we powered up. Visually, the harness was perfect: every connector seated, every wire where it should be. So I stopped looking and started probing. Continuity mode — the one that beeps — does one simple thing: touch the two probes to the two ends of a path, and if the path is electrically alive, it beeps. No beep, no path.
End to end across the suspect run: silence. So I split the run into segments and tested each one — wire, connector, wire. The beeper died right across one innocent-looking WAGO connector. It was seated. It looked perfect. Inside, the contact had given up. We swapped it, powered up, and the error was gone. Twenty minutes of probing beat two hours of staring.
The same logic works on any car. If an accessory is dead, check the fuse first — probe both ends of the fuse for continuity instead of squinting at the little metal strip. Then check the wire end to end (with the battery disconnected). If there’s no beep, don’t condemn the whole wire: test segment by segment, connector by connector. Corrosion and loose crimps love to hide inside connectors that look perfectly healthy from the outside.
Trace, Don’t Guess
Later that season, a circuit died mid-test after some hard laps. First theory: the step-down converter was dead. It’s the part everyone suspected, and if we’d been guessing, we would have bought a new one and lost a day. Instead, we probed along the chain, junction by junction, and found the actual break — inside the energy meter, a completely different component.
Mechanics call the guessing approach the “parts cannon”: keep replacing components until the problem goes away. It’s expensive and it teaches you nothing. The meter flips the order. Verify the cheap, accessible suspects first, prove each one innocent or guilty, and follow the evidence. The broken part is where the beep stops, not where your hunch points.
The Ghost in the Readings
One more failure mode, because it cost us a full day: grounds. We once had sensors producing jittery nonsense and a data logger that refused to work, and every reading changed depending on what else was plugged in. The cause was embarrassing — some modules were powered from a separate supply that didn’t share a ground with the main controller. One shared ground wire later, every signal cleaned up instantly.
Cars do the same thing. A bad ground connection produces the weirdest symptoms on the vehicle: flickering lights, gauges that dance, electronics that act possessed only when the engine is running. If a problem feels random and haunted, stop chasing the components and check the ground connections first.
Three Checks Before You Replace Anything
- Battery rest voltage. Set the meter to DC volts, probes on the battery terminals with the car off. A healthy 12V battery rests around 12.5 to 12.7 volts. If it’s well below that after sitting overnight, the battery — or something quietly draining it — deserves attention before any other diagnosis.
- Continuity on the suspect fuse or wire. Battery disconnected, meter in continuity mode, probe both ends. Beep means the path is alive. No beep means you narrow it down: move one probe to the nearest connector and test each segment. The dead segment contains your problem.
- Respect the current jacks. The meter’s current-measuring mode connects the probes almost directly together inside the meter. Probe a live circuit in that mode and you can blow the meter’s internal fuse — or worse. If you don’t specifically know you need to measure current, stay on volts and continuity. Those two modes solve ninety percent of car wiring problems anyway.
You Don’t Need a Fancy Meter
Ours is an unbranded team-room unit that has outlived several connectors and one energy meter. Any auto-ranging digital multimeter with a continuity beeper will do everything in this article. [AMAZON: auto-ranging digital multimeter]
A race car and a ten-year-old sedan fail the same way: quietly, invisibly, and at the worst possible moment. And sometimes what looks like a wiring fault is really a signal problem — like the day our car insisted its own gas pedal was pressed when nobody was in the seat. Either way, the multimeter is how you stop arguing about what’s broken and start knowing.
